Let’s start with a question. What is the first thing that a user interacts with on a website? The interface, of course. The look and feel of the website is the first thing that creates the “First Impression” on the users. An interactive web application can make or break the deal for users, this is why more and more people opt for UI testing for their web applications.
Whatever the user sees and plays with on a website falls under the category of user interface. It is the space on which the website and the user interacts. So when you click on the wheel with section Play and Win on Amazon every sunday and the wheel rotates to award prizes, it is interacting with the user. They could have done it with a simple ‘click and see’ feature but they know the importance of user experience.
UI/UX has become a lot more important in the past decade. As the number of competitors in our niche increases, we need to make sure that we stay ahead of the curve and give our users the best user experience. Also as the web application comes bundled up with a number of features which can be pretty complex at times. This is why it becomes vital to make this process smoother and intuitive for the user. Otherwise they might just leave your application frustrated by the complexity. This is why UI has become so vital and thereby UI Testing!
In this article I’ll discuss in detail about UI testing and why it is important. I will also share some details on the methods of UI testing along with some important tools for UI testing
So, What is UI Testing?
User Interface testing or UI testing is the type of testing whereby we check if the UI for the web application works fine or has any defect which hamper user behaviour and does not meet the written specifical. For example, for UI testing we can perform the test on a text field that will take input from the user or the dropdown that slides down when the mouse is hovered over it.
It is vital to know how the user will interact between the user and the website, in order to perform UI testing. In other words, by performing UI testing, the tester tries to mimic the user’s behaviour to see how the user will be interacting with the website and see if the website is performing as expected and there are no flaws. A small flaw in the UI such as an issue in the CTA button might result in your website visitor not being able to fill up the lead form, thereby never converting. Who knows, if this was the user who would finally give a boost to your ROI.
The following test scenario will help you understand a component that is important for UI testing. In this test scenario, I am trying to book 3 tickets for a movie on BookMyShow, a popular website for booking movie and event tickets. When I select the seat E-13, it automatically selects 3 seats like this:
They are selected continuously which is great since most of the people booking tickets will sit together. Now, if I select F-23 instead of E-13, let’s see what happens.
Notice that E-13 is automatically deselected since the application expects that the people would want to sit together and the next selection would be F-22.
When I select E-13 as the next seat, the application would select only that seat. This is a major issue as the application could automatically select E-13,14,15 after selecting E-13 as in the first step.
Failure in these types of features could harm the user experience and might leave them sight frustrated. Thereby, it becomes vital to perform UI testing.
Is UI testing the same thing as GUI testing?
GUI (Graphical User Interface) and UI (User Interface) are often viewed as two similar concepts in the world of front-end testing. But, on a deeper level, they are not. UI testing is a broader field and GUI testing can be considered as a subset of UI testing. GUI testing includes the testing of graphical interfaces such as the color of the elements, the functioning of the elements visible to the user, etc. Whereas the UI testing also includes the non-graphical part of the interfaces such as command line reader or anything through which the user will interact along with GUI. The reason that UI testing and GUI testing are viewed as similar is because many of the components of UI testing are used less often today. So, in a way, whatever is used inside the area of UI testing today is majorly the GUI testing
Manual or Automated, Which Way To Go?
Like any other type of testing, UI testing can also be performed either manually or through automation. Manual testing requires the tester to perform each test manually on every element. For example, testing an input field would require typing in different values again and again for any discrepancies. At first glance, it might look that if there are fewer components of a website UI, it is better to go for UI testing through the manual process which would be done easily and quickly. While it is correct and should be done for a simpler and basic website, it should not be the way to go for complex ones. Today’s websites with rich user interfaces makes the manual UI testing quite inefficient, time-consuming and error-prone. Imagine the times you would have to enter the values manually if there are five input boxes and five dropdowns that get populated on the input. It’s insanely high
So, why to go for UI testing automation?
- Speed: The first and foremost is the speed. Time is the major resource for every company and automation testing saves a lot of it. Selenium Automation testing requires us to write the tests only once and run them again and again without any intervention with different values and different scenarios.
- Accuracy:Selenium Automation testing helps us in executing tests without any error, provided the tests are written correctly. Manual testing’s main disadvantage is that it is prone to human error.
- Transparency: Selenium Automation testing also helps in building reports quickly and sharing with the team as soon as the testing is completed. On the other hand, manual testing takes time in extracting results and reporting them manually to generate reports through a software or manually
Also, while performing UI testing it is equally important to make sure the web application does not have any cross browser compatibility issues. Since every browser works with a different browser engine and might not support the same CSS features. Thereby it becomes important that we make sure that our UI renders seamlessly on all of the major browsers. Testing on different browsers is called cross browser testing, It helps the tester test his website on multiple combinations of all the major browsers and devices including mobiles, tablets, casts etc.
Similar to the above mentioned areas, cross browser testing can also be performed in both the ways (Manual and Automation). But, hundreds and thousands are quite too much for a person or a team to test manually. This needs to be automated. Automation is the human’s way of telling the computers that, “I am handing this over to you with the instructions, please do the magic as you always do”. Automated cross browser testing is done through scripts and running them over multiple browsers. The number and language of the tests is up to the tester.
Selenium is the best way to go for automated cross browser testing. A great learning curve helps testers run the selenium tests quickly and easily. To have hassle-free testing, it is recommended to use an online cross browser testing platform that integrates with Selenium and can provide many features through drag and drop functionality

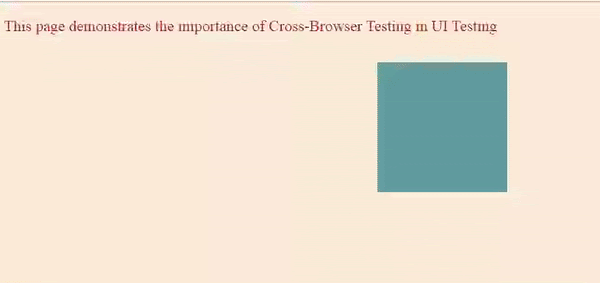

In the next test scenario, I’ll demonstrate the importance of cross browser testing in UI testing. This testing has been performed using an online cross browser testing tool, LambdaTest. To perform our UI test, I’ve taken a simple web page demonstrating the zoom property. Let’s say you decide to build a website where a major element is a box which zooms when hovered over by the mouse. You implement this functionality by using the zoom property of the CSS. But, since you were using Google Chrome as your default browser, zoom worked perfectly fine. Maybe you tested in IE, Edge or Safari and it was working fine there too. It looked like this
But now, when your check your website in Firefox browser,you’ll notice that box doesn’t scale:
<title>UI Testing Sample</title>
zoom : 1.5
<body style=”background-color: antiquewhite”>
<p>This page demonstrates the importance of cross browser Testing in UI Testing</p>
UI Testing Tools
To test the user interface of your website, there are a few good tools available online:
What are techniques for UI testing?
Testing techniques are required to know the answer to the question, “How to perform the testing? In the various techniques described below, various processes are followed. Once we have decided on the type of testing technique we are following, it becomes easier to just follow the concept and generate the results.
Exploratory testing requires no pre-planning and the tester just creates tests on experience and various other parameters such as previous test results. These parameters may differ from project to project. Exploratory testing provides a very flexible and open opportunity for the tester. Exploratory testing in the UI testing helps identify hidden test cases as the UI may behave differently in different machines. A tester can make use of the automation while tackling exploratory testing challenges to run the cases on different data. Exploratory testing can also be performed efficiently manually.
If exploratory testing is performing testing without any planning, scripted testing is just opposite to that. Scripted testing is done after the scripts have been written and the test cases have been decided beforehand. As a first step in scripted testing, the tester defines the scripts which denotes the tester’s entries and the expected output. The results are then analyzed and reported accordingly. Similar to the exploratory testing, the tester can go ahead with automated scripted testing or manual scripted testing. Although, automated testing in the scripted testing is recommended today because of the large number of lines of code and increased complexities of the project
User Experience Testing
The user experience testing technique in UI testing can be done by providing the built project to the end user. The end user can then use the product like we all do and provide his feedback which can then be conveyed to the developer through the testing team. The companies sometimes also release a beta version of the product to their end-users to collect the feedback according to the vast geographic locations. This creates a great testing environment
It is not so hard to decode that the user experience testing is a type of exploratory testing since the users do not know what to test and how to test i.e. there is no pre-defined plan. Needless to say, it is done manually. User experience testing can also be done on the partial product to check the UI on a large number of screens and on different locations without developing the complete project. This helps the companies test smaller components with the same intensity as the complete project would have been tested which ultimately improves the quality of the product.
How does your UI performance matter?
The average size of the website has increased over time. From a few pages to hundreds of pages in a single website today, websites are bigger than ever. Not only this, a single page contains hundreds of elements to create the complete website. This creates a huge load on the server from which the website is being fetched. A slower website is not a good sign for any web developer. Testing this also comes under the umbrella of UI testing and the performance can certainly be improved.
Evidently, the improvement of 50% in the back-end system loads the website just 10% faster while the improvement of 50% the website 40% faster. . This makes UI testing a necessary process in improving the overall performance of the website. Achieving speed definitely gives an edge above other websites. Wondering how to achieve this? There are loads of software available online which can be used for performing UI testing such as YSlow and PageSpeed.
The UI testing performs checks on the elements that weave together to create the user interface. Writing tests again and again and executing them manually is becoming redundant. This is why the world is moving towards UI testing automation. The role of UI testing automation has increased significantly in the past years due to increasing complexities and bigger projects.
All in All
In a nutshell, UI testing requires testers to test the website as if to mimic the user’s behaviour. Combining all the possibilities and permutations, the tester needs to make sure that the website works seamlessly with all the elements working as intended. Also, since no browser is the same, cross browser testing needs to be performed to ensure your website performs seamlessly across all major browsers. UI testing automation will further help you gain an extra edge over your competitors and make your users addicted to your web application. AS That’s all folks!
Stay Safe and Happy Testing!
Originally published at LambdaTest
Author Harish Rajora
